Tus kheej -Priming Foam Fire Monitor
PLZ series phau ntawv nws tus kheej-priming foam fire monitor yog portable, field-adaptable suppression device tsim los rau cov xwm txheej uas tsis muaj cov kav dej ruaj khov (piv txwv li, thaj chaw ua haujlwm ib ntus, ua liaj ua teb me me, chaw cia sab nraum zoov). Tsis zoo li lub hauv paus ua npuas ncauj saib xyuas, nws sib koom ua ke ntawm tus kheej- lub tshuab nqus tsev twj tso kua mis-siv cov nyhuv Venturi los kos cov npuas dej ncaj qha los ntawm cov thawv ntim khoom nqa tau (20L / 50L tej kas tham), tshem tawm kev cia siab rau ua ntej-ntsia ua npuas ncauj tes hauj lwm.
Hauj lwm lawm
Ca-Kev Tiv Thaiv Hluav Taws Xob Co., Ltd yog ib qho ntawm cov tuam ntxhab thiab cov muag khoom ntawm tus kheej- priming foam hluav taws saib hauv Suav teb. Txais tos rau kev lag luam wholesale kev cai ua khoom siv hluav taws xob ntawm tus nqi sib tw los ntawm peb lub hoobkas. Tiv tauj peb rau cov khoom pheej yig dua.
Khoom Description

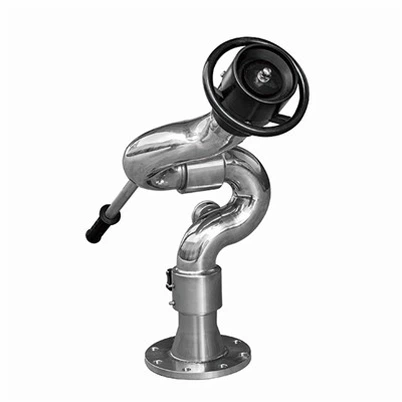

CA-FIRE Self-Priming Foam Fire Monitor
PLZ series phau ntawv nws tus kheej-priming foam fire monitor yog portable, field-adaptable suppression device tsim los rau cov xwm txheej uas tsis muaj cov kav dej ruaj khov (piv txwv li, thaj chaw ua haujlwm ib ntus, ua liaj ua teb me me, chaw cia sab nraum zoov). Tsis zoo li centralized ua npuas ncauj saib, nws integrates atus kheej -priming suction hose-siv cov nyhuv Venturi los kos ua npuas ncauj ncaj qha los ntawm cov thawv nqa tau yooj yim (20L / 50L chim), tshem tawm kev cia siab rau ua ntej- ntsia ua npuas ncauj tes hauj lwm.
PLZ series 'tsim chaw nyob ntawm tus kheej -priming efficiency thiab phau ntawv tswj:
Tus kheej -Priming Foam Generator: Ua rau hauv rab phom lub cev, nws tsim qhov tsis zoo ntawm qhov siab ntawm - cov dej nrawm nrawm los nqus cov npuas dej kom pom tseeb (3% / 6% piv) los ntawm cov thawv sab nraud; cov ntxaij lim dej sab hauv tiv thaiv cov khib nyiab.
Saj zawg zog Suction Hose: A 2m-ntev, xau- pov thawj hose (nrog rau lub submersible lim taub) uas txuas rau portable ua npuas ncauj chim- tau tshaj 3% AFFF / 6% AR-AFFF concentrates.
T-Zoo li phau ntawv tuav: Ib qho ergonomic stainless hlau kov uas tswj 360℃nruam kab rov tav tig, -60℃/+70℃ntsug suab, thiab ua npuas dej / dej hloov pauv (ib tes ua haujlwm rau kev hloov kho sai).
Kev ntsuas siab: Ib qho kev poob siab- tiv taus, ua kua- ntsuas qhov ntsuas (0-2.5MPa ntau) uas qhia tau tiag tiag- lub sijhawm ua haujlwm siab- tseem ceeb rau kev tswj hwm 0.8-1.0MPa qhov chaw qab zib rau tus kheej zoo-priming.
DN100 Rooj Zaum Base: Ib qho stainless hlau 4-nti flange (6 lub qhov txuas) uas ua kom lub tsev ruaj khov rau cov platforms ruaj khov lossis xaiv cov skids mobile (rau kev xa mus ib ntus).
Core Components & Functions datasheet
| Parameter | ZPO 8/24 | ZPO 8/32 | ZPO 8/40 | ZPO 10/48 |
|---|---|---|---|---|
| Flow tus nqi (L / S) | 24 | 32 | 40 | 48 |
| Rated Ua Haujlwm Siab (MPa) | 0.8 | 0.8 | 0.8 | 1.0 |
| Ua Haujlwm Siab Siab (MPa) | 0.8–1.6 | 0.8–1.6 | 0.8–1.6 | 0.8–1.6 |
| Ntau yam (m) - Ua npuas ncauj | Ntau dua lossis sib npaug li 42 | Ntau dua lossis sib npaug li 48 | Ntau dua lossis sib npaug li 55 | Ntau tshaj los yog sib npaug rau 60 |
| Qhov siab (m) - Dej | Ntau dua lossis sib npaug li 55 | Ntau tshaj los yog sib npaug rau 60 | Ntau dua lossis sib npaug li 65 | Ntau dua lossis sib npaug li 70 |
| Kab rov tav tig (degree) | 360 (nruam) | 360 (nruam) | 360 (nruam) | 360 (nruam) |
| Vertical Rotation (zeeg) | -60–+70 | -60–+70 | -60–+70 | -60–+70 |
| Khoom siv | Stainless hlau + Aluminium Alloy | Stainless hlau + Aluminium Alloy | Stainless hlau + Aluminium Alloy | Stainless hlau + Aluminium Alloy |
| Txuas Flange | DN100 (4 ") | DN100 (4 ") | DN100 (4 ") | DN100 (4 ") |
| Kev Pabcuam Ib puag ncig | -10℃– +50 degree | -10℃– +50 degree | -10℃– +50 degree | -10℃– +50 degree |
Phau Ntawv Qhia Kev Ua Haujlwm
Ua ntej-Kev Tshawb Fawb Kev Ua Haujlwm (Tshwj xeeb rau tus kheej-Priming)
Paub meej tias lub suction hose yogtag nrho submergednyob rau hauv ib lub thoob ntim ntim (3% / 6% concentrate; tsis tas yuav khoom).
Tshawb xyuas lub hose rau cov dej xau / tawg (txias tawg tsis zoo siab, tiv thaiv tus kheej -priming).
Xyuas kom tseeb tias cov dej tua hluav taws tuaj yeem tswj tau 0.8-1.0MPa siab.
Kev Ua Haujlwm (Foam Hom - Chav B Hluav Taws Xob)
Ruaj ntseg PLZ chav tsev rau nws lub hauv paus (los yog mobile skid) kom tiv thaiv recoil.
Txuas lub tshuab nqus tsev rau phom tus kheej - qhov chaw nres nkoj; ceev ceev -tso clamp.
Qhib lub valve maj mam; saib xyuas lub ntsuas kom txog thaum lub siab stabilizes ntawm 0.8MPa.
Siv T- tuav hloov mus rau "Npaj" hom-koj yuav hnov ib lub suab nqus me ntsis (paub meej tias ua npuas dej sib xyaw ntawm lub nozzle).
Aim lub nozzle ntawm lubhluav taws hauv paus / kua nto(tsis yog nplaim taws); kho rotation/pitch nrog T- tuav.
Qhib lub ndlwg valve maj mam mus txog qhov yuav tsum tau khiav (piv txwv li, 24L / s rau me me nchuav).
Kev Ua Haujlwm (Dej Hom - Chav A Hluav Taws Xob)
Disconnect lub suction hose (los yog cia nws txuas; hloov mus rau "Dej" bypasses tus kheej -priming system).
Siv T- tuav los xaiv "Dej" hom.
Lub hom phiaj ntawm qhov hluav taws kub hauv paus; siv cov lus tsa suab kom txias cov khoom uas nyob ib sab.
Tshaj tawm{0}}Kev ua haujlwm
Kaw lub valve dej; Hloov mus rau hom "Dej" thiab yaug lub kaw lus rau 1 feeb (tshem tawm cov npuas dej kom tsis txhob txhaws).
Disconnect lub suction hose; ntxuav lub taub lim nrog dej.
Tshem tawm cov kua seem ntawm lub cev phom kom tsis txhob khov (yog tias<0°C).
Kev Ua Raws Cai & Kev Nyab Xeeb Kev Nyab Xeeb
PLZ series ntsib:
NFPA 11 (Tus kheej-Priming Foam Device Standards)
GB 15308 (Cov Hluav Taws Xob Ua Npuas Ncauj Saib Xyuas Kev Siv Hluav Taws Xob)
ISO 14520 Kev Tiv Thaiv Hluav Taws Xob (Fixed Fire Protection Systems)
Txoj Cai Kev Nyab Xeeb:
Tsuas yog cov neeg ua haujlwm tau txais kev cob qhia (nrog Class B daim ntawv pov thawj tua hluav taws) tuaj yeem ua haujlwm hauv chav tsev.
Hnav tshuaj lom neeg- hnab looj tes tiv taus / 护目镜 thaum tuav ua npuas ncauj concentrate.
Do not use foam mode in winds >5m / s (cua disperses daim pam ua npuas ncauj).
