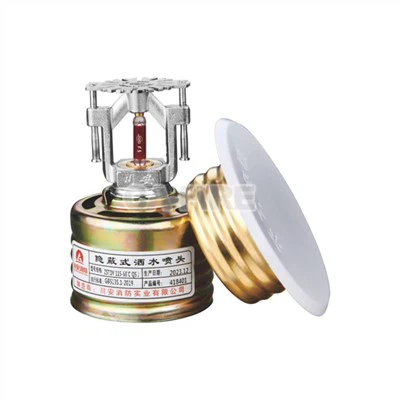

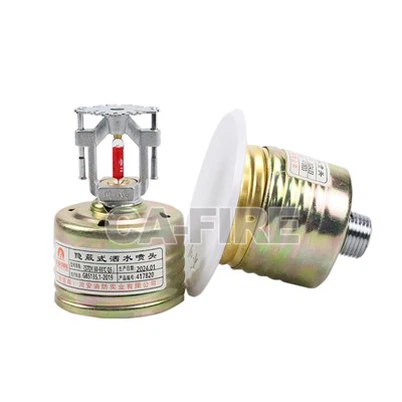

Kev Tiv Thaiv Hluav Taws Pov Tseg Hluav Taws Kub Sprinklers
Cov Hluav Taws Xob Tiv Thaiv Cov Hluav Taws Xob Hluav Taws Xob yog qhov ua tau zoo -Kev Ua Haujlwm Ncua Hluav Taws Xob Hluav Taws Xob (feem ntau raug xaiv los ua Lub Taub Hau Hluav Taws Xob Hluav Taws Xob, lossis tsuas yog Concealed Sprinkler) - cov ntsiab lus tseem ceeb ntawm niaj hnub Concealed Hluav Taws Sprinkler Systems, tsim kom muaj qhov sib npaug ntawm qhov tsis muaj kev zoo nkauj nrog cov hluav taws kub hnyiab sab hauv. Cov cuab yeej no tau ua tiav tag nrho nyob rau hauv lub qab nthab, tsuas yog ib qho dej ntws tawm -mount hniav npog pom, ua rau nws zoo tagnrho rau cov chaw uas muaj hluav taws kub hnyiab tau cuam tshuam rau kev sib koom ua ke los yog muaj kev pheej hmoo ntawm kev puas tsuaj.
Hauj lwm lawm
Ca-Fire Protection Co., Ltd yog ib lub tuam txhab muaj kev ntseeg siab tshaj plaws thiab cov chaw muag khoom ntawm kev tiv thaiv hluav taws kub hnyiab tua hluav taws hauv Suav teb. Txais tos rau kev lag luam wholesale kev cai ua khoom siv hluav taws xob ntawm tus nqi sib tw los ntawm peb lub hoobkas. Tiv tauj peb rau cov khoom pheej yig dua.
Khoom Description
Kev Tiv Thaiv Hluav Taws Pov Tseg Hluav Taws Kub Sprinklers
Cov Hluav Taws Xob Tiv Thaiv Cov Hluav Taws Xob Hluav Taws Xob yog qhov ua tau zoo -Kev Ua Haujlwm Ncua Hluav Taws Xob Hluav Taws Xob (feem ntau raug xaiv los ua Lub Taub Hau Hluav Taws Xob Hluav Taws Xob, lossis tsuas yog Concealed Sprinkler) - cov ntsiab lus tseem ceeb ntawm niaj hnub Concealed Fire Sprinkler Systems, tsim kom muaj qhov sib npaug ntawm qhov tsis pom kev zoo nkauj nrog kev txhim kho hluav taws kub sab hauv. Cov cuab yeej no tau ua tiav tag nrho hauv cov qab nthab uas raug tshem tawm, tsuas yog ib qho dej yaug -mount hniav npog pom, ua rau nws zoo tagnrho rau cov chaw uas muaj hluav taws kub hnyiab yuav cuam tshuam kev sib koom ua ke los yog muaj kev pheej hmoo ntawm kev puas tsuaj.
| Yam khoom | Specification |
|---|---|
| Flow Coefficient (K-Factor) | K = 80 / K = 115 |
| Nominal Kev Ua Haujlwm Kub | 57℃/ 68℃/ 79℃/ 93℃/ 141 degree |
| Maximum Ambient Kub | 27℃/ 38℃/ 49℃/ 63℃/ 111 degree |
| Khob Noob Xim | Txiv kab ntxwv / Liab / Daj / Ntsuab / Xiav |
| Kev sib txuas xov | Rp 1/2 (K{2}}); Rp 3/4 (K=115) |
| Sensing Element | iav qhov muag teev (5mm / 3mm) |
| Yam tsawg kawg nkaus ambient kub | 4 degree |
| Lub sij hawm teb Index (RTI) | 5mm Lub Teeb: 50-80 (m·s) 0.53mm Lub Teeb: Tsawg dua lossis sib npaug li 50 (m·s) 0.5 |
| Hom kev teeb tsa | Pendent (Cov hom zais cia) |
Cov yam ntxwv & Cov Khoom Zoo
Peb pib li cas
A
Concealed SprinklerAesthetic Integration rauConcealed Hluav Taws Sprinkler Systems
Cov nplaim hluav taws-cov khoom siv kho kom zoo nkauj npog (customizable nyob rau hauv dawb, beige, los yog metallic tiav) zaum flush nrog qab nthab nto, txuam gypsum, aluminium, los yog ntoo- grain suspended ceilings feem ntau ntawmConcealed Hluav Taws Sprinkler Systemkev teeb tsa. Qhov kev tsim no tshem tawm qhov pom kev tsis sib haum xeeb nrog siab -kawg sab hauv thaum tswj kev tua hluav taws tag nrho.
B
Dual -Kev ua haujlwm theem (Concealed Hluav Taws Sprinkler Lub Taub HauCore Function)
Raws li ib tugConcealed Hluav Taws Sprinkler Lub Taub Hau, nws ua haujlwm nyob rau hauv ob kauj ruam synchronized rau cov lus teb txhim khu kev qha hauv ibConcealed Hluav Taws Sprinkler System:
Lub sab nrauv fusible alloy vaj tse (nrog rau lub teeb qhov ntsuas kub) melts, detaching cov hniav npog kom nthuav tawm cov tub ntxhais sprinkler.
Lub 9 hli tshav kub- lub iav qhov muag pom kev (nrog rau qhov kub thiab txias- cov kua dej teb) tawg thaum cov dej nthuav dav, ua rau 360℃(DN15) lossis 270℃(DN20) dej faib los ntawm 304 stainless hlau deflector.
C
Durability rau Ntev -Lub Sij HawmConcealed Hluav Taws Sprinkler SystemStandby
Chrome-Plated Brass Base: Resistant corrosion nyob rau hauv humidConcealed Hluav Taws Sprinkler Systemqab nthab ib puag ncig, nrog rau lub neej ua haujlwm 12+ xyoo.
EPDM Sealing nplhaib: Khaws xoom xoom hauv qab 3.0MPa kev ntsuas siab, kom ntseeg tauConcealed Sprinklerkev cia siab rau thaum lub sij hawm ntev - standby
Installation & Maintenance rauConcealed Hluav Taws Sprinkler SystemKev koom ua ke
1 Npog SprinklerInstallation nyob rau hauvConcealed Hluav Taws Sprinkler Systems
Qab nthab Compatibility: Rau 15-30mm tuab suspended ceilings (tus qauv hauvConcealed Hluav Taws Sprinkler Systems).
Cov cuab yeej txwv: Siv tsuas yog cov chaw tsim khoom lag luam- muab cov cuab yeej tshwj xeeb rau nruab qhov noConcealed Hluav Taws Sprinkler Lub Taub Hau- zam cov yeeb nkab wrenches/socket extensions (ntau torque deforms lub hauv paus tooj dag thiab ua rau to).
Qhov System Siab Test: Tom qab kev teeb tsa hauv lubConcealed Hluav Taws Sprinkler System, ua 1.2MPa 15-feeb ntsuas ntsuas kom paub meej tias tsis muaj cov xov hauv paus to.
Aesthetic Alignment: Kom paub meejConcealed Sprinkler's hniav npog yog flush nrog lub qab nthab; kho qhov mounting puag qhov tob rau misalignment.
2 Concealed Hluav Taws Sprinkler Lub Taub HauKev tu
Txhua hliConcealed SprinklerTshawb xyuas: Tshawb xyuas lub hau npog kom xoob / puas; xyuas kom tsis muaj khib nyiab thaiv covConcealed Hluav Taws Sprinkler Lub Taub Hau's activation path (tseem ceeb rauConcealed Hluav Taws Sprinkler Systemkev ntseeg tau).
Peb lub hlis twgConcealed Hluav Taws Sprinkler SystemKev pov thawj: Paub meej tias lub vaj tsev fusible alloy yog ruaj khov (tsis txhob tshem lub hau tshwj tsis yog kuaj lubConcealed Sprinkler).
Cia: UninstalledConcealed Hluav Taws Sprinkler Lub Taub Haus yuav tsum tau muab cia rau hauv qhuav tej yam kev mob (-15℃~ 40 degree) rauConcealed Hluav Taws Sprinkler Systemkev xa tawm.
Hloov: Hloov ib qhoConcealed Sprinklernrog cov qij tawg, deformed bases, los yog cov tsev nyob tsis muaj xim - disassembly/repair yog txwv tsis pub.
