Hluav Taws ncaj kwj & tshuaj tsuag nozzle
Cov Hluav Taws Xob Ncaj Nraim & Txau Nozzle yog ntau- ua haujlwm tua hluav taws uas sib xyaw ua ke ntev - kab ncaj nraim thiab cov qauv tshuaj tsuag tiv thaiv hauv ib chav. Los ntawm kev kho lub nozzle, cov neeg siv tuaj yeem hloov cov qauv tawm sai sai rau kev tua hluav taws zoo, cua txias, thiab tiv thaiv hluav taws hauv kev lag luam, hauv nroog, thiab kev lag luam.
Hauj lwm lawm
Ca-Kev Tiv Thaiv Hluav Taws Xob Co., Ltd yog ib qho ntawm cov tuam txhab ntseeg siab tshaj plaws thiab cov chaw muag khoom ntawm hluav taws xob ncaj nraim & tshuaj tsuag nozzle hauv Suav teb. Txais tos rau kev lag luam wholesale kev cai ua khoom siv hluav taws xob ntawm tus nqi sib tw los ntawm peb lub hoobkas. Tiv tauj peb rau cov khoom pheej yig dua.
Khoom Description

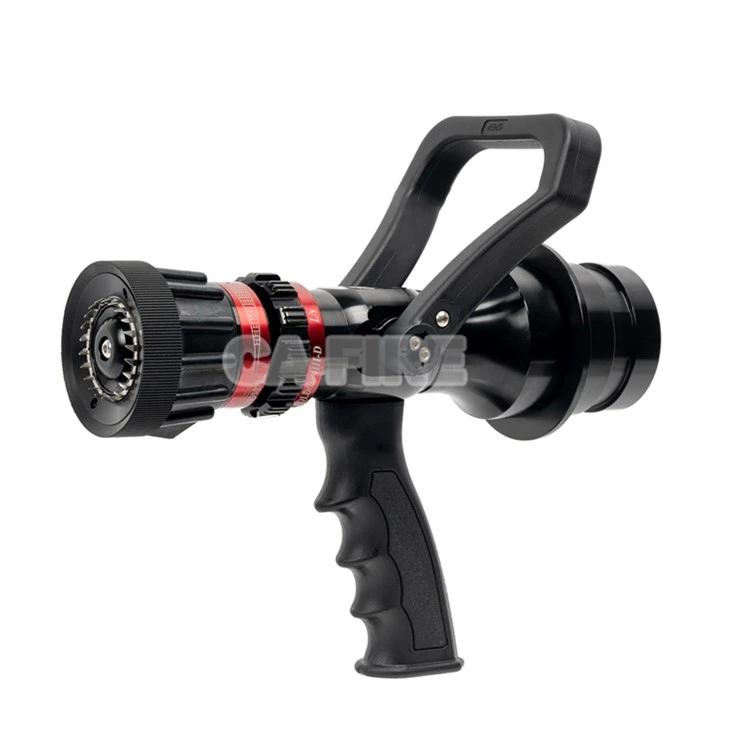

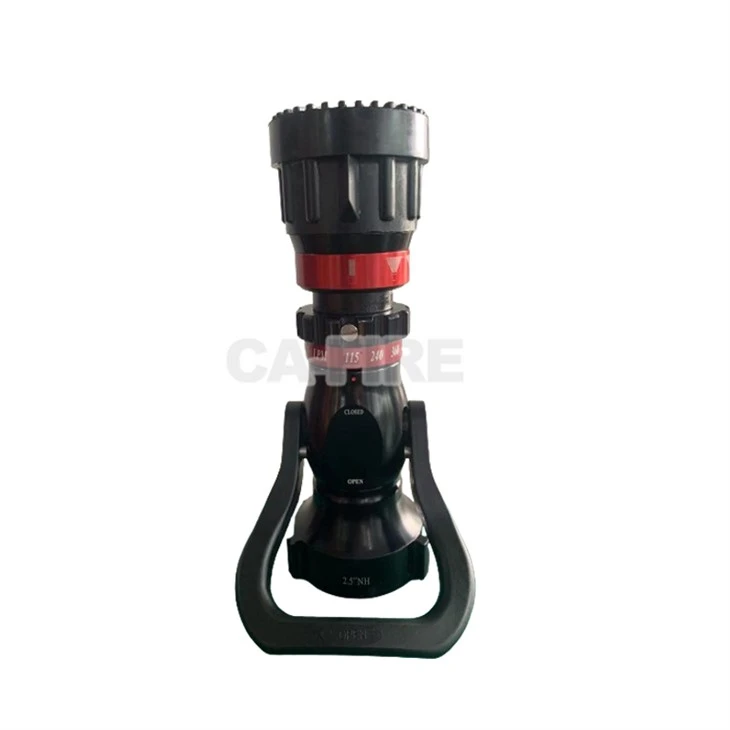

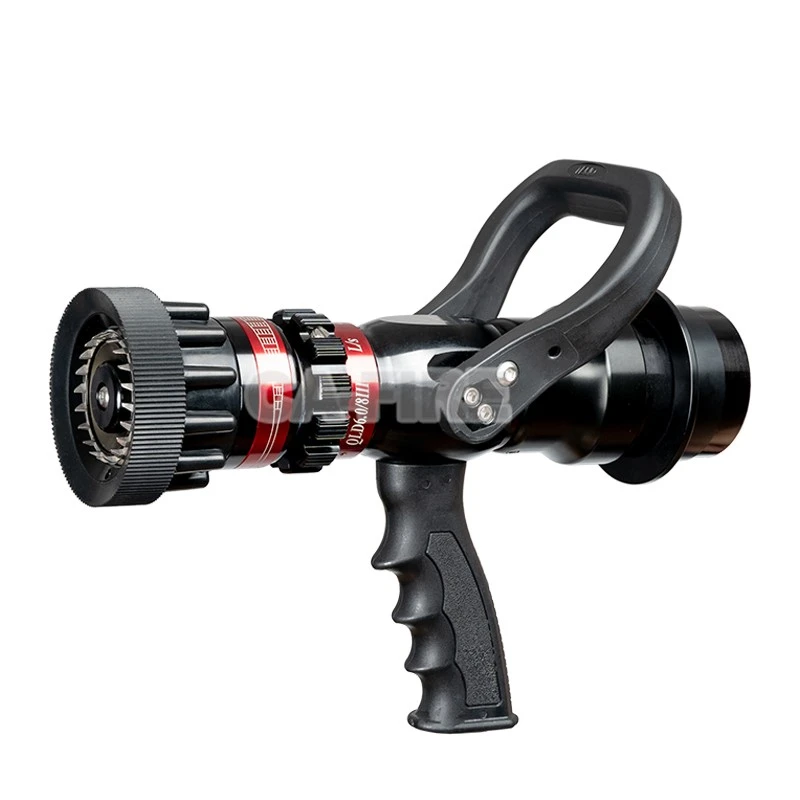

CA-FIRE Hluav Taws Ncaj Ncaj Nraim & Txau Nozzle
Qhov ntau- lub hom phiaj hluav taws kub hnyiab yog qhov kev nce qib tseem ceeb hauv kev tswj hluav taws xob thev naus laus zis, kev sib koom ua ke ntawm ob lub peev xwm ntawm ob qho tib si khoom- bore thiab pos huab nozzles rau hauv ib chav tsev. Los ntawm kev hloov lub dab tshos hloov, cov neeg ua haujlwm tuaj yeem hloov pauv los ntawm qhov muaj zog siab siab - lub dav hlau siab rau cov hom phiaj nyob deb mus rau qhov txawv txav qauv tsim los rau kev tiv thaiv thermal thiab kev tawm tsam hauv cheeb tsam. Tus cwj pwm los ntawm nws qhov kev ncav cuag thiab ergonomic kev ua haujlwm, cov cuab yeej muaj ntau yam no yog qhov tseem ceeb rau ntau yam xwm txheej kub ntxhov, muab cov kev daws teeb meem rau kev tua hluav taws, txo qhov kub thiab tsim cov ntaub thaiv pa taws.
Ntsiab nta & Functions
Dynamic Flow AdaptabilityCov cuab yeej muab kev hloov pauv tam sim ntawd ntawm qhov tsom siab siab - nrawm nrawm thiab qhov dav - lub kaum ntse ntse. Qhov no ua rau cov neeg teb tuaj yeem hloov kho lawv cov kev tawm tsam hauv lub sijhawm tiag tiag - thaum hluav taws hloov pauv.
Dual{0}}Lub Hom Phiaj Tactical SynergyLos ntawm kev sib koom ua ke qhov sib sib zog nqus- lub zog nkag ntawm lub bore khoom nrog cov thermal- tiv thaiv cov khoom ntawm cov pos huab nozzle, chav tsev no ua hauj lwm raws li cov cuab yeej siv dav. Nws ua tiav ob qho tib si hydraulic quab yuam uas yuav tsum tau ua kom ntev -kev txwv ntau thiab vapor barrier tsim nyog rau kev txias.
Precision tuav & tus neeg ua haujlwm ruaj ntsegKev siv lub siab -tej lub kaw lus kaw, lub nozzle ua kom yooj yim rau cov dej tam sim ntawd- tswj kev khiav. Qhov no engineering txoj kev ua tau zoo dampens reactive rog, ua kom lub nozzle tseem tswj tau thiab ruaj khov thaum lub sij hawm siab - kev nyuaj siab xa mus.
Hnyav -Lub luag haujlwm ntawm cov qauv kev ntseeg siabUa los ntawm kev lag luam -qib stainless hlau, aluminium, los yog siab - tensile composites, kho vajtse yog tsim los rau lub neej ntev. Cov ntaub ntawv no muab kev tiv thaiv zoo tiv thaiv oxidative kev nyuaj siab thiab kev siv tshuab ua haujlwm - thiab - kua muag nyob rau hauv cov xwm txheej hnyav.
Modulated Volumetric ControlAdvanced variants tso cai rau qhov tseeb tuning ntawm paug ntim. Qhov no tso cai rau tus neeg teb xov tooj kom synchronize cov khoom siv dej nrog rau qhov tshwj xeeb BTU tso tawm ntawm qhov hluav taws kub, optimizing kev pab cuam thiab efficiency.
Khoom Specifications
Yam khoom:Hluav Taws ncaj kwj & tshuaj tsuag nozzle (Ntau-Function)
Tawm qauv:Ncaj Nraim / Txau (Fog)
Hom kev ua haujlwm:Phau ntawv adjustable
Shutoff Hom:Pob Valve lossis Lever Control
Ncaj kwj Range:Ntau tshaj lossis sib npaug li 25 m
Spray Range:Ntau tshaj lossis sib npaug li 13 m
Ncaj Ncees Flow Rate:Kwv yees li . 300 L/min
Txau Flow Rate:210 - 600 L / min (kho tau, qauv nyob ntawm)
Kev khiav hauj lwm siab:0.6-1.0MPa
Ua haujlwm Torque:Tsawg dua lossis sib npaug li 15 N·m
Kev Sib Txuas Loj:1.5 "/ 2" / 2.5 "(yeem)
Hom kev sib txuas:Threaded los yog Storz coupling (yeem)
Khoom siv:
Lub cev: Aluminium Alloy / Stainless Hlau
Nozzle Cheebtsam: Engineering Yas / Hlau
Nto tiav:Anodized / Polished / Painted (yeem)
Daim ntawv thov:
Muaj hluav taws kub sib ntaus sib tua hauv nroog, tiv thaiv hluav taws hauv nroog, warehouses, cov tsev lag luam
Txheem / Ua raws:
Ua raws li cov txheej txheem hluav taws kub sib ntaus sib tua
Daim ntawv thov Scenario
Primary Ignition ControlSiv cov khoom siv - dav hlau teeb tsa, cov neeg teb tuaj yeem tso tawm qhov siab - cov kab dej cuam tshuam los tua lub rooj zaum ntawm hluav taws. Qhov no tso cai rau kev nruj nruj los ntawm kev ruaj ntseg standoff nrug thaum lub sijhawm tseem ceeb ntawm qhov xwm txheej.
Thermal Mitigation & ContainmentQhov dav - qauv pos huab muaj nuj nqi yog engineered los nqus ambient cua sov thiab txo qhov kub ntawm cov vaj tse nyob ib sab. Qhov kev ua kom txias txias no ua haujlwm tseem ceeb hauv kev tiv thaiv kev tiv thaiv theem nrab thiab qhov hluav taws kub txuas ntxiv.
Personnel Defensive ShieldingLos ntawm kev tsim qhov dav -lub kaum vapor screen, lub nozzle ua rau kom muaj cua sov radiant. Qhov kev tiv thaiv kev tiv thaiv no txhim kho kab - ntawm - pom thiab muab kev nyab xeeb micro- ib puag ncig rau cov neeg ua haujlwm hauv siab - cua sov lossis pa taws - thaj chaw ntom ntom.
Broad -Spectrum UtilityCov cuab yeej no tau ua kom zoo rau ntau qhov chaw ib puag ncig, suav nrog cov chaw lag luam hnyav, cov tsev khaws khoom thauj khoom, kev tsim kho hauv nroog, thiab kev nyab xeeb rau pej xeem.
Kev Pabcuam Xwm Ceev Ntau YamTshaj li kev tua hluav taws ncaj qha, lub nozzle cov kev hloov pauv hloov tau ua rau nws muaj txiaj ntsig zoo rau kev ua haujlwm cawm tshwj xeeb, ua kom cov khoom phom sij txias, thiab ua kom sai - teb cov lus txhawb nqa.
Yuav siv li cas
Txuas lub Nozzle
Txuas lub qhov hluav taws kub kom ruaj ntseg rau lub qhov hluav taws kub hose los yog coupling, kom ntseeg tau tias kev sib txuas yog nruj thiab xau -dawb.
Xaiv tus qauv tawm
Tig lub taub hau lub taub hau los xaiv cov qauv uas xav tau: ncaj kwj rau ntev -ntau qhov hluav taws kub tua lossis tshuaj tsuag (huab) kom txias thiab tiv thaiv.
Qhib Cov Dej Dej
Maj mam qhib lub pob valve lossis lever tswj kom pib dej ntws, tswj kev tuav ruaj khov los tswj cov tshuaj tiv thaiv quab yuam.
Kho tus nqi ntws (yog tias tsim nyog)
Rau cov qauv nrog adjustable txaus, tswj tus nqi ntws raws li qhov hluav taws kub siv thiab kev ua haujlwm xav tau.
Ua haujlwm ruaj ntseg
Coj cov dej ntws ntawm lub hauv paus ntawm qhov hluav taws kub. Siv hom tshuaj tsuag kom txias ib puag ncig los yog tsim cov ntaub thaiv dej tiv thaiv thaum tsim nyog.
Tshem tawm tom qab siv
Kaw lub valve kom tiav thaum ua haujlwm tiav, tom qab ntawd tso cov seem seem ua ntej disconnecting lub nozzle.
