Yuav Ua Li Cas Lub Hluav Taws Xob Hluav Taws Xob Ua Haujlwm

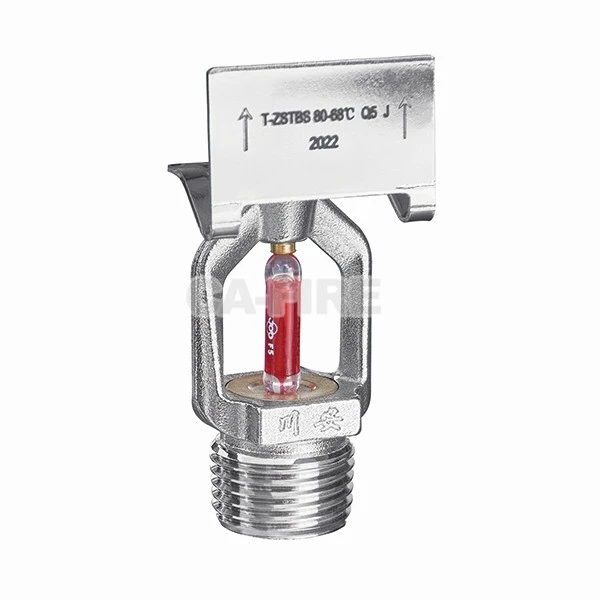

Lub taub hau hluav taws kub hnyiab, tseem hu ua lub taub hau sprinkler los yog tsuas yog lub taub hau, yog ib feem ntawm lub tshuab hluav taws xob. Nws yog ib qho cuab yeej tsim los tshawb xyuas thiab tswj cov hluav taws kub los ntawm kev tso dej los yog lwm yam tshuaj tua hluav taws thaum muaj hluav taws kub.
Lub taub hau sprinkler feem ntau yog ntsia rau ntawm lub qab nthab lossis phab ntsa ntawm lub tsev thiab txuas nrog lub network ntawm cov kav dej uas tau ntim nrog dej los yog nias nrog lwm tus tua hluav taws. Thaum hluav taws tshwm sim, cua sov los ntawm cov nplaim taws nce thiab ua kom lub taub hau sprinkler.
Hauj lwm lawm
Khoom Description
|
Style |
Pendent |
Upright |
Sidewall |
Pendent |
Upright |
Sidewall |
|
Teb |
Txheem teb |
Teb ceev |
||||
|
Teb Temp. |
68 degree / 155 degree F |
|||||
|
Ua Haujlwm Siab |
1.2 MPa / 12 bar |
|||||
|
Raws li txoj kab uas hla |
DN15 |
|||||
|
Xov Size |
1/2 "BSP los yog 1/2" NPT |
|||||
|
K Factor |
80 @metric (5.6@USA) |
|||||
|
Khoom siv |
Brass thav duab, tooj dag deflector, iav qhov muag teev, Teflon (PTFE) plated hlau sealing nplhaib |
|||||
|
Basic Parameters ntawm Hluav Taws Sprinkler |
||||
|
Qauv |
Nominal Diameter |
Xov |
Tus nqi ntws |
Style |
|
T-ZSTP |
DN15 |
R1/2 |
80±4 |
Upright/Pendent |
|
DN 20 |
R3/4 |
115±6 |
||
|
T-ZSTX |
DN15 |
R1/2 |
80±4 |
Pendent |
|
DN 20 |
R3/4 |
115±6 |
||
|
T-ZSTZ |
DN15 |
R1/2 |
80±4 |
Upright |
|
DN 20 |
R3/4 |
115±6 |
||
|
T-ZSTBS |
DN15 |
R1/2 |
80±4 |
Kab rov tav Sidewall |
|
DN 20 |
R3/4 |
115±6 |
||
|
ZSTDY |
DN15 |
R1/2 |
80±4 |
Pendent |
|
DN 20 |
R3/4 |
115±6 |
||
Cov duab ntxaws
leej twg xaiv peb?
Peb yog ib lub chaw tsim khoom hluav taws xob kev lag luam, nrog rau cov khoom zoo thiab kev tsim nyog. Peb cov khoom yog tsim thiab tsim raws li cov qauv siab tshaj plaws kom muaj kev nyab xeeb siab tshaj plaws. Peb tau cog lus los muab peb cov neeg siv khoom nrog cov kev daws teeb meem zoo tshaj plaws, txawm tias nws yog ib qho khoom siv los yog ua tiav. Peb pab neeg ntawm cov kws tshaj lij tau mob siab rau kev xa cov khoom lag luam txhim khu kev qha, raug nqi, thiab kev tiv thaiv hluav taws uas ua tau raws li peb cov neeg siv khoom xav tau. Xaiv peb rau koj cov khoom siv hluav taws xob xav tau thiab tso siab rau peb kom muab cov khoom zoo thiab kev txawj ntse uas koj tsim nyog.
ib-stop daws
pab neeg tshaj lij
siab zoo
Cim npe nrov: Yuav ua li cas lub tshuab hluav taws xob ua haujlwm, Tuam Tshoj li cas lub tshuab hluav taws xob ua haujlwm manufacturers, lwm tus neeg, Hoobkas
