K80 Standard Response Hluav Taws Sprinkler

K80 tus qauv teb hluav taws kub sprinkler (ZST series) yog siab -kev ntseeg siab tsis siv neeg tua hluav taws tiv thaiv kev tsim kho rau nruab nrab- rau- thaj chaw muaj kev pheej hmoo loj, muaj peb qhov kev teeb tsa: upright (ZSTZ), Pendent (ZSTX), thiab kab rov tav sidewall (ZSTBS). Tsim los nrog cov txheej txheem teb cov txheej txheem, nws sib xyaw ua ke lub iav qhov muag teev qhov ntsuas kub ntawm qhov ntsuas kub -sensitive element, xa sai sai thaum kuaj pom hluav taws-tsim cua sov.

Xa kev nug Tsham tam sim no

Hauj lwm lawm

Ca-Kev Tiv Thaiv Hluav Taws Xob Co., Ltd yog ib qho ntawm cov tuam ntxhab thiab cov muag khoom ntawm k80 tus qauv teb hluav taws kub sprinkler hauv Suav teb. Txais tos rau kev lag luam wholesale kev cai ua khoom siv hluav taws xob ntawm tus nqi sib tw los ntawm peb lub hoobkas. Tiv tauj peb rau cov khoom pheej yig dua.

CA-FIRE K80 Standard Response Fire Sprinkler

K80 tus qauv teb hluav taws kub sprinkler (ZST series) yog asiab-kev ntseeg siab tsis siv neeg tua hluav taws tua hluav taws ua haujlwm rau nruab nrab- mus rau - thaj chaw muaj kev pheej hmoo loj, featuring peb installation configurations: upright (ZSTZ), pendent (ZSTX), thiab kab rov tav sidewall (ZSTBS). Tsim los nrog cov txheej txheem teb cov txheej txheem, nws sib xyaw ua ke lub iav qhov muag teeb lub teeb pom kev zoo- cov ntsiab lus rhiab, xa tawm sai sai thaum kuaj pom hluav taws- tsim cov cua sov.

Ua raws li GB 5135.1-2019 cov qauv, lub tshuab nqus dej no khav theeb K-factor of 80 (flow coefficient), txhawb nqa dej kom zoo nrog lub taub nominal ntawm DN15. Cov khoom tseem ceeb muaj xws li tooj dag thav duab, 304 stainless hlau deflector, thiab EPDM sealing nplhaib, kom ruaj khov nyob rau hauv ntau qhov chaw (kub ntau: -15℃~ 40 degree). Nws yog qhov zoo tagnrho rau cov chaw ua lag luam, kev cob qhia kev lag luam, kev xa khoom thauj khoom, thiab cov tsev nyob siab siab, muab kev tiv thaiv hluav taws zoo rau cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob zoo tib yam.

Qauv	Hom kev teeb tsa	K-Qhov xwm txheej	Nominal Diameter (DN)	Kev sib txuas xov	Ncej Khoom	Khoom siv deflector	Sealing Khoom	iav qhov muag teev (Temp./Fluid Color)	Rated Ua Haujlwm Siab (MPa)	Hydrostatic Test Siab (MPa)	Tus nqi ntws @ 0.1MPa (L / min)	Thaj tsam (m²)	Installation Qhov siab (m)
ZSTZ15-K80	Upright	80	15	1/2"	tooj dag	S304 Stainless hlau	EPDM	68℃/ Liab, 79℃/ Txiv kab ntxwv, 93℃/ daj	0.05~1.2	3.0	253	12~18	2.3~6.0
ZSTX 15-K80	Pendent	80	15	1/2"	tooj dag	S304 Stainless hlau	EPDM	68℃/ Liab, 79℃/ Txiv kab ntxwv, 93℃/ daj	0.05~1.2	3.0	253	12~18	2.3~6.0
ZSTBS15-K80	Kab rov tav Sidewall	80	15	1/2"	tooj dag	S304 Stainless hlau	EPDM	68℃/ Liab, 79℃/ Txiv kab ntxwv, 93℃/ daj	0.05~1.2	3.0	253	8~14	2.0~4.5

3.1 Premium Component Performance

Hlau Ncej: Corrosion-resistant nrog lub zog txhua yam, chrome-plated nto ua kom ntev- lub sij hawm durability nyob rau hauv cov av ntub los yog me me corrosive ib puag ncig, kev pab lub neej ntau dua los yog sib npaug rau 10 xyoo.

S304 Stainless Hlau Deflector: Precision-stamped design optimizes water distribution uniformity, resisting xeb thiab deformation txawm nyob rau hauv siab - kub kub tej yam kev mob.

EPDM Sealing nplhaib: Zoo elasticity thiab kub adaptability (-15℃~ 80 degree), tswj kev ua haujlwm tsis zoo hauv qab 3.0MPa kev ntsuas siab, tsis muaj kev laus lossis tawg tom qab lub sijhawm tos ntev.

Thaum tshav kub kub-Sensitive Glass Bulb: Sau nrog cov dej ua haujlwm ruaj khov, muaj qhov pom 1.6mm npuas (qhov taw qhia tsis zoo). Standard teb lub sij hawm Performance index (RTI) 80 ~ 100 (m·s) ⁰·5, ua kom muaj kev ntseeg siab nyob rau hauv qhov ntsuas kub.

3.2 Tus Qauv Teb & Kev Txau Zoo

Cov txheej txheem teb cov txheej txheem sib npaug ua kom nrawm thiab tsis tseeb - tswb tiv thaiv, zoo tagnrho rau cov xwm txheej uas yuav tsum tau tswj cov dej tawm tsis muaj dej ntau dhau.

Optimized deflector geometry muab cov qauv tshuaj tsuag nrog nruab nrab me me, txhim kho hluav taws xob tua hluav taws los ntawm kev npog thaj chaw loj (txog 18m² rau ib lub tshuab nqus dej).

3.3 Kev nyab xeeb -Centric Design

Liab yas tiv thaiv clip tiv thaiv lub iav qhov muag teev thaum lub sij hawm kev thauj mus los thiab kev tsim kho, tshem tau ntawm tes (tsis muaj cov cuab yeej hlau tso cai) kom tsis txhob muaj kev puas tsuaj.

Xov tsim nrog PTFE daim kab xev sib raug zoo (tsis txhob ua ntej- xov daim ntawv thov) tiv thaiv kev thaiv cov dej tawm ntawm qhov chaw, kom ntseeg tau tias tsis muaj kev cuam tshuam.

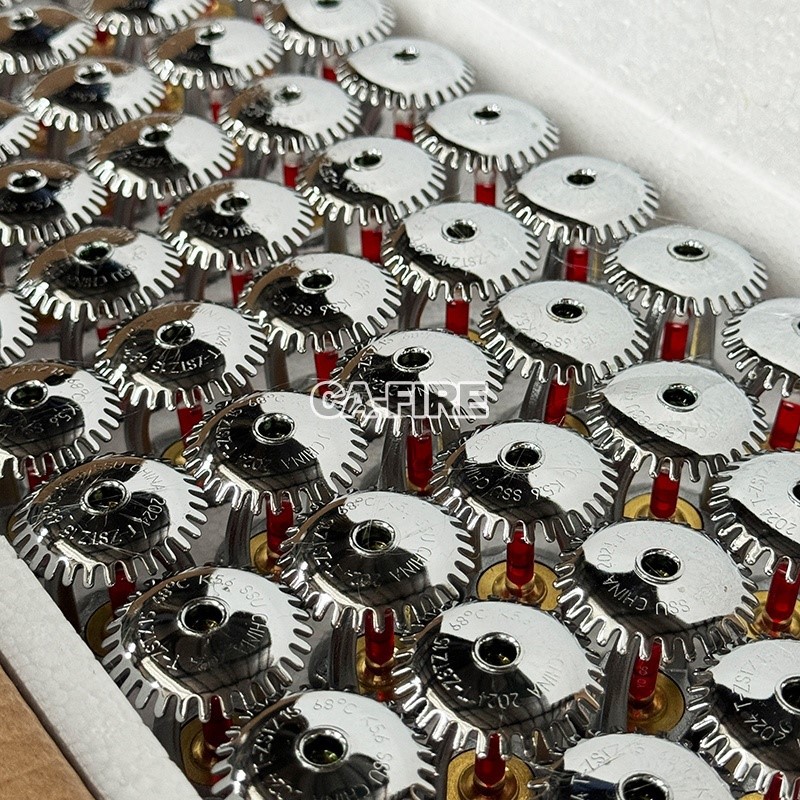

product-800-800

Lub tswv yim kho

Kev tshuaj xyuas txhua hli: Ntxuav cov plua plav / cov khoom khib nyiab nrog cov plua plav plua plav (tsis muaj dej kub, corrosive thinners, lossis ammonia); tshawb xyuas cov iav qhov muag tawg, cov kua dej poob, los yog lub foob xau.

Tshawb xyuas peb lub hlis twg: Txheeb xyuas qhov kev ncaj ncees thiab kev sib tw; tshem cov cobwebs los yog khoom txawv teb chaws nyob ib ncig ntawm lub sprinkler.

Calibration txhua xyoo: Tso cai rau cov koom haum tsim nyog los kuaj cov qauv txau dej (hydrostatic siab, ua kom kub); hloov cov khoom siv nrog kev ua haujlwm tsis zoo.

Cia & tuav: Khaws cov khoom siv tsis siv rau hauv cov ntim khoom qub ntawm -15℃~ 40 degree, deb ntawm tshav ntuj ncaj qha thiab qhov chaw kub kub; zam hlau tiv nrog iav qhov muag teev.

Q1: Dab tsi yog qhov tshwj xeeb teb hluav taws kub sprinkler?
Lub tshuab hluav taws xob tshwj xeeb yog tsim los ua kom nrawm dua li cov lus teb cov tshuaj tua hluav taws, pab tshawb xyuas thiab tua hluav taws thaum ntxov.

Q2: Puas tuaj yeem rov siv dua tom qab ua kom tiav?
Tsis yog. Qhov no yog kaw - hom sprinkler tsim rau ib qho - lub sijhawm ua haujlwm nkaus xwb. Thaum qhib, nws yuav tsum tau hloov.

Q3: Qhov ntsuas kub dab tsi muaj?
Ntau qhov ntsuas kub muaj, suav nrog 57 degree, 68 degree, 79 degree, 93 degree, 141 degree, 182 degree, thiab 260 degree, nrog rau cov xim iav sib xws.

Q4: Dab tsi yog K-muaj feem cuam tshuam?
Lub tshuab nqus dej muaj nyob nrog K=80 thiab K=115 kom haum rau qhov kev tsim qauv sib txawv.

Q5: Cov txheej txheem kev teeb tsa twg tau txais kev txhawb nqa?
Nws tuaj yeem ntsia tau rau hauv upright, pendent, lossis kab rov tav sidewall configurations.
