Durable. ntseeg tau. Muaj ntawv pov thawj. Tshawb nrhiav Peb Cov Hluav Taws Xob Y-Cov
Kev Tiv Thaiv Hluav Taws Xob Y-Strainer yog ib qho tseem ceeb tiv thaiv cov kav dej tiv thaiv hluav taws. Nws lub luag haujlwm tseem ceeb yog tshem tawm cov khoom tsis huv - xws li xeb, xuab zeb, thiab cov yeeb nkab nplai - los ntawm cov dej ntws. Feem ntau ntsia ntawm qhov nkag ntawm cov khoom siv tseem ceeb xws li lub siab- txo qis, lub tswb valve, thiab cov twj tua hluav taws, nws tiv thaiv kev txhaws thiab puas, ua kom lub cev ua haujlwm ruaj khov thaum muaj xwm txheej kub ntxhov. Nws qhov tshwj xeeb Y- tus qauv tsim muaj cov qauv tsim qauv, tsis tshua muaj dej tsis kam, thiab kev saib xyuas yooj yim
Hauj lwm lawm
Ca-Kev Tiv Thaiv Hluav Taws Xob Co., Ltd yog ib qho ntawm cov tuam ntxhab thiab cov muag khoom ntawm cov khoom siv ruaj khov. ntseeg tau. tau ntawv pov thawj. tshawb nrhiav peb cov hluav taws kub y- cov lim dej hauv Suav teb. Txais tos rau kev lag luam wholesale kev cai ua khoom siv hluav taws xob ntawm tus nqi sib tw los ntawm peb lub hoobkas. Tiv tauj peb rau cov khoom pheej yig dua.
Khoom Description

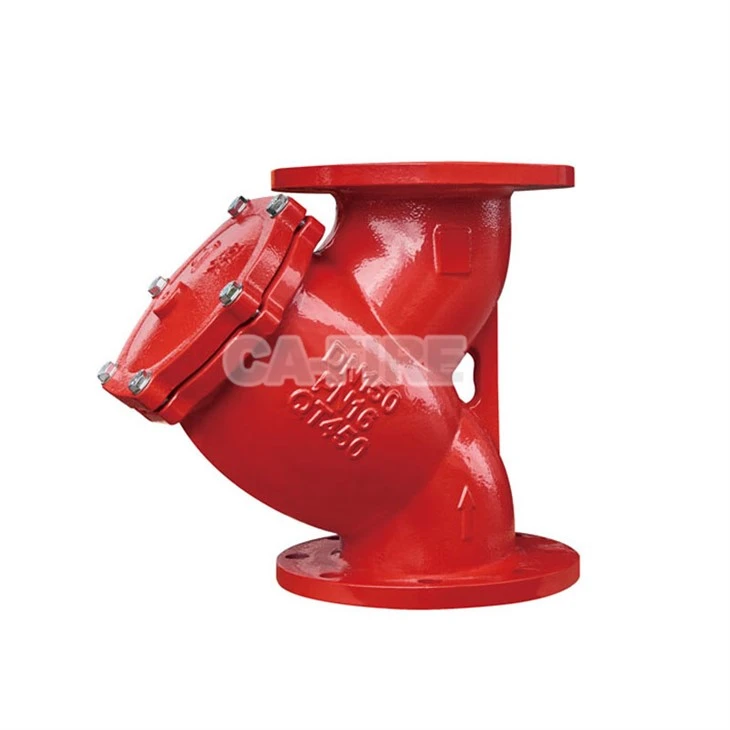

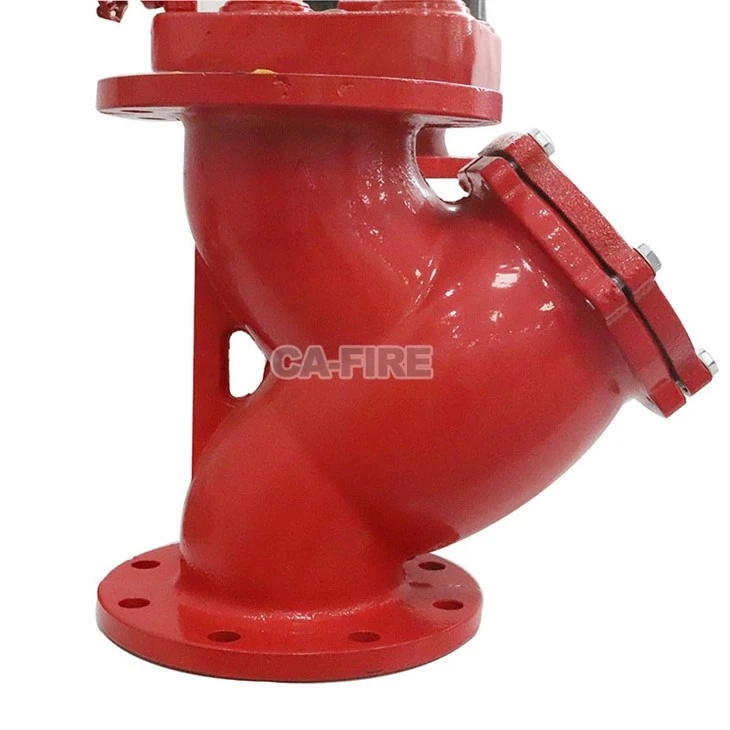

CA-FIRE Y-Strainer rau Fluid Systems
Kev tsim kho muaj zog: Lub tshuab lim dej muaj qhov ua kom yooj yim, tag nrho - ntws cov qauv tsim nrog thaj chaw pom loj, ua rau poob siab tsawg. Cov ntsiab lus lim feem ntau yog cov hlau tsis muaj steel hlau ruaj ruaj uas muaj peev xwm ntawm cov khoom sib tsoo ntawm 0.15 hli thiab 2.5 hli. Standard filtration fineness rau cov tshuab dej yog 18-30 mesh.
Kev sib txuas ntau yam: Muaj ntau hom kev sib txuas, suav nrog flanged, grooved, thiab threaded, kom haum rau cov kav dej sib txawv.
Cov khoom siv ruaj khov: Cov khoom siv hauv lub cev muaj xws li cov hlau nplaum thiab cov pa roj carbon steel, feem ntau nrog epoxy resin txheej rau corrosion kuj. Lub vijtsam feem ntau yog ua los ntawm stainless hlau (304 lossis 316).
Kev tu yooj yim: Lub strainer npo tuaj yeem tshem tau yooj yim los ntxuav. Qee cov qauv tau nruab nrog lub tshuab nqus tsev sib txuas kom yooj yim tshem tawm sediment.
| Qauv / Specification | Flanged Y-Trainer | Grooved Y-Strainer |
|---|---|---|
| Nominal Diameter (DN) | 50, 65, 80, 100, 125, 150, 200, 250, 300 | 50, 65, 80, 100, 125, 150, 200 |
| Lub ntsej muag - mus rau - Lub ntsej muag Length (mm) | 197, 240, 270, 300, 335, 385, 470, 540, 610 | 197, 240, 270, 300, 335, 385, 470 |
| Rated Ua Haujlwm Siab | 1.6 MPa siab | |
| Plhaub Test Siab | 2.4 MPa siab | |
| Siv tau nruab nrab | Dej thiab cov xov xwm zoo sib xws | |
| Nruab nrab kub | 4 ~ 70 degree | |
Daim Ntawv Thov & Qhov Zoo
Daim ntawv thov
Y-Cov lim dej yog qhov tseem ceeb hauv ntau qhov xwm txheej hauv kev tiv thaiv hluav taws:
Nruab rau ntawm qhov tso tawm lub ntsiab ntawm alub tshuab hluav taws xoblos yog lub qhov hluav taws xob ntawm ahluav taws kub tanklos tiv thaiv lub twj tso kua mis thiab lwm yam khoom siv downstream.
Muab tso rau ntawmtswb li qubnyob rau hauv tsis siv neeg sprinkler systems los tiv thaiv lub taub hau clogging.
Siv hauvindustrial hluav taws tiv thaiv pipelines(piv txwv li, petrochemical, fais fab nroj tsuag) los lim dej, chav dej, lossis lwm yam xov xwm.
Ua haujlwm ntawm lub inlet ntawmsiab-txo li qubthiabqib tswj li qubnyob rau hauv cov dej siv tshuab kom ntseeg tau tias lub valve ntev thiab kev ua haujlwm ruaj khov.
Qhov zoo
High Filtration Efficiency: Qhov chaw pom loj thiab qis -flow-resistance tsim kom ntseeg tau tias tsawg kawg nkaus ntws. Kev ntxuav yog feem ntau nrawm dua nrog lwm hom lim dej.
Exceptional Durability: Lub vijtsam stainless hlau muaj kev tiv thaiv corrosion zoo heev, thiab epoxy-coated lub cev ua kom lub neej ntev.
Kev txhim kho yooj yim: Txhawb nqa kab rov tav lossis ntsug (raws li tus qauv thiab ntws kev taw qhia), nrog 伸缩式 (expansion{0}}type) qauv muaj los kho cov kav dej ntev.
Kev tu yooj yim: Cov qauv tsim tawm uas tshem tau tso cai rau kev tu ncaj qha, txo qis qis thiab cov nqi tu.
Kuv vam tias cov lus Askiv no yuav pab tau rau koj cov kev xav tau. Yog tias koj xav tau cov ntsiab lus ntxiv ntawm cov ntawv pov thawj tshwj xeeb lossis muaj cov ntsiab lus thov tshwj xeeb, thov hu rau dawb.
Yuav tsum tau nruab
Cov Txheej Txheem Txhim Kho:
Nruab kab rov tav los yog nrog lub vijtsam tig mus rau hauv qab rau cov ntawv thov ua kua, ua raws li cov lus qhia ntws ntawm lub strainer lub cev.
Nruab qhov kev sib cais li qub (piv txwv li, lub rooj vag li qub) sab sauv thiab nqes dej ntawm cov lim dej kom pab tswj kev nyab xeeb.
Cov Kev Tswj Xyuas Kev Nyab Xeeb:
Ib txwm cais cov strainer los ntawm kev kaw lub inlet thiab qhov hluav taws xob li qub thiab tso tawm qhov seem seem ua ntej ua haujlwm kho tiv thaiv kev raug mob los ntawm cov dej siab -.
Tshawb xyuas cov sealing gasket tsis tu ncua thiab hloov tam sim ntawd yog tias pom muaj cov pa xau.
Tsim kom muaj lub sijhawm tshuaj xyuas thiab tu tsis tu ncua (piv txwv li, cov lim dej hauv chav twj tso kua mis yuav tsum tau kuaj xyuas tsawg kawg ib xyoos ib zaug).
Kev Ua Raws Cai:
Cov lim dej yuav tsum raug xaiv thiab ntsia raws li cov qauv kev tiv thaiv hluav taws uas siv tau, xws li cov kav dej thiab cov tshuab nqus dej.
